SAML Authentication Methods Overview

This feature is only available with Authenticator versions 2.108.0 or higher.

Overview

The SAML Authentication Methods feature enriches each SAML response in the Secure Access admin console with concise information about how a user authenticated.

This metadata gives identity providers and relying parties visibility into authentication strength and context, enabling better policy decisions, auditing, and adaptive security.

---

Benefits

• The feature aligns with Beyond Identity’s model of flows, factors, and methods.
• It enables downstream systems to reason about authentication strength.
• It lays groundwork for risk-based and adaptive authentication policies in SAML integrations.

---

What It Does

When a user authenticates through a SAML transaction, the system collects indicators describing the authentication methods used during that session.

These indicators are inserted into the SAML response under a new authentication_methods field.

This data includes:

• Whether authentication used biometrics, PIN, a hardware/software key, or a roaming authenticator.
• Whether authentication was local or delegated to a trusted device.
• Whether additional evidence such as device posture, geolocation, or risk signals influenced the policy decision.

This information is non-sensitive and privacy-preserving, while still giving relying parties meaningful context about authentication strength.

---

Why It Matters

Previously, SAML transactions did not expose authentication detail beyond basic result status.

With this enhancement, admins and connected systems can now:

• Enforce adaptive policies
  Example: reject logins using a simple PIN when biometrics were available.

• Strengthen compliance visibility
  Systems can record which factor type (biometric, possession, knowledge) was used.

• Integrate with risk engines
  Assign varying trust levels based on authentication strength or device posture.

• Support auditing
  Provides richer data for forensic and compliance reporting.

---

Relationship to Authentication Concepts

Authentication Flows

Describe the interaction path used to complete authentication:

• Platform authentication: user verifies locally on device.
• Roaming authentication: authentication occurs on a trusted secondary device.
• Layered authentication: fallback to roaming when local authentication fails.

---

Authentication Factors

Represent the type of evidence proving identity:

• Knowledge: PIN or password
• Possession: registered device or hardware key
• Inherence: fingerprint or facial ID
• Optional contextual signals: location, behavioral patterns

---

Authentication Methods

Identify the specific mechanism providing one or more factors.

Method Reference Table

Method	Description	Factor
bi-bio	Biometric verification (fingerprint, facial recognition)	Inherence
pin	PIN or pattern verification	Knowledge
hwk	Hardware-secured key	Possession
swk	Software-secured key	Possession
bi-roam	Roaming authenticator used (trusted device)	Possession
bi-os	User’s OS verification completed	Possession
mfa	Combined multi-factor authentication	Multiple

These values align to RFC 8176, extended with platform-specific method codes.

---

How It Works

1. User authenticates through platform, roaming, or layered method.
2. Platform Authenticator collects metadata—method, factor type, context.
3. Data is embedded into the SAML response.
4. Relying party parses it to determine authentication strength.

---

Where It Appears

• Policy Events now include an authentication_methods field.

• Authentication Events reflect detected methods.

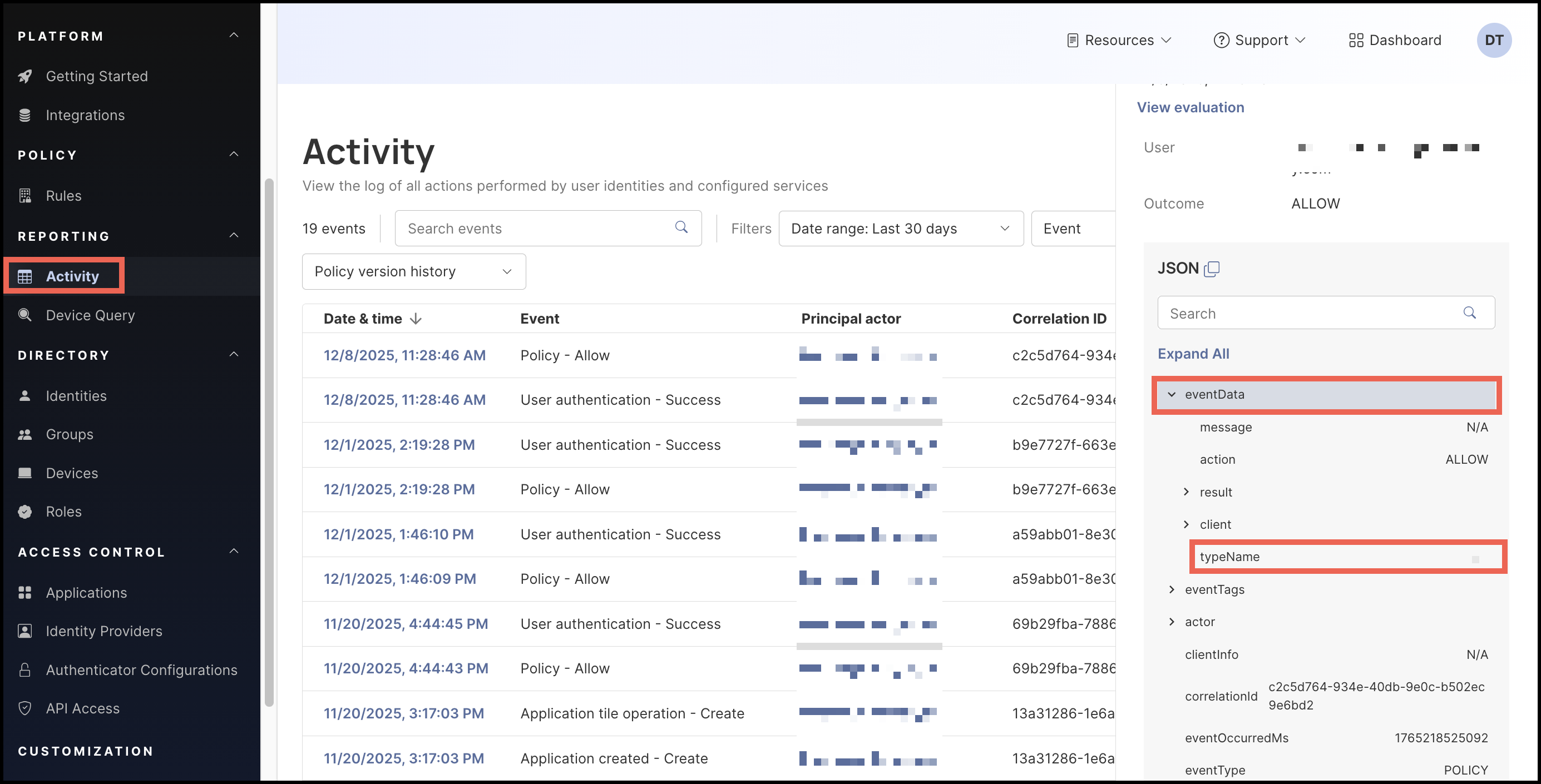

• Example values may appear in the Activity logs section as: "authentication_methods": ["hwk", "bio", "bi-roam"]



Use Cases

• Policy enforcement
  Require biometrics when available; fallback to roaming otherwise.

• Audit logging
  Review which factor types are occurring across an organization.

• Security analytics
  Integrate event logs with SIEM or analytic systems for risk-based scoring.
